Can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame, the greater the distance test
The detection angle of 60 degrees, the flame spectrum particularly sensitive
Sensitivity adjustable (shown in blue digital potentiometer adjustment)
The comparator output signal clean waveform is good, driving ability, than 15mA
With a precision potentiometer adjustable sensitivity adjustment
Operating Voltage 3.3V-5V
The output in the form: DO digital switching outputs (0 and 1) and AO analog voltage output
A fixed bolt holes for easy installation

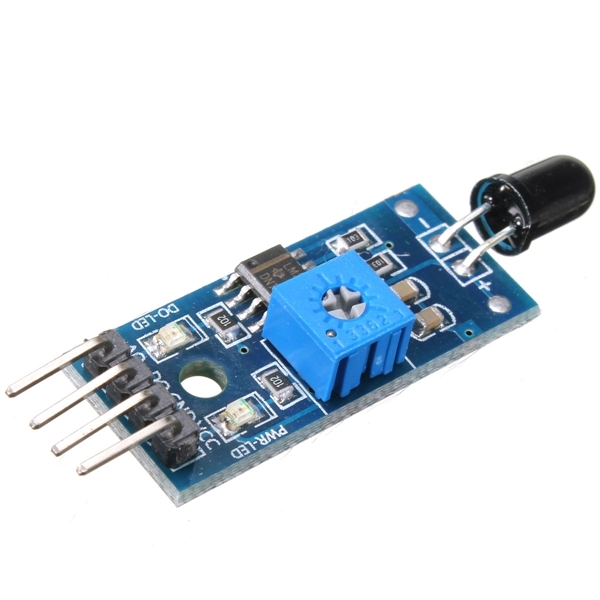

Small plates PCB size: 3.2cmx1.4cm
Using a wide voltage LM393 comparator
Suits for Various flame, fire detection
