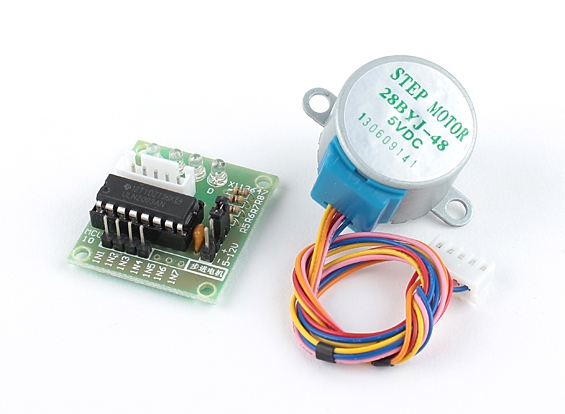

5V Stepper Motor 28BYJ-48 With Drive Test Module Board ULN2003 5 Line 4 Phase Arduino Projects Robots NEW
Brand new and high quality
Voltage: 5V
Diameter: 28mm
Step angle: 5.625 x 1 / 64
Reduction ratio: 1 / 64
5 Line 4 phase can be driven by ordinary uln2003 chip can also be connected in phase 2
development board used for.
Supporting the use of a direct plug and easy to use stepper motor used in the development board.
Stepper motor driver board with ULN2003
A, B, C, D four-phase LED indicates the status of the stepper motor work
Stepper motor with a standard interface, when used directly pluggable
