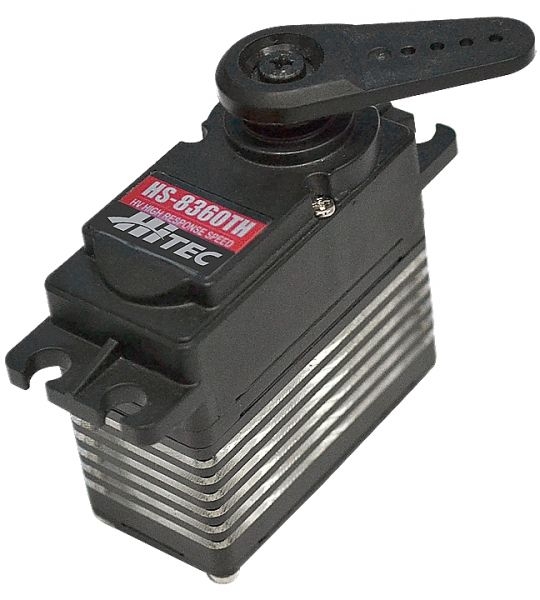

HITEC HS 8360 TH SERVO HV HIGH RESPONSE ULTRA SPEED 13KG 0.07SEC 68GR

Our high voltage, ultra response HS-8360TH provides the precision you need, the millisecond you need it! Designed with an efficient coreless motor, non-programmable digital circuitry and heavy-duty titanium gears, this speedy servo is the perfect answer for 600+ size helis and 1/10TH truggies, buggies, monster trucks, on-road and short course vehicles. Furiously fast and furiously cool.

Features
High Resolution Ultra Response Non-Programmable Digital Circuit
Efficient Coreless Motor
Durable Titanium Gears
7.4v 2-Cell LiPo Capability
Industry Standard 25 Tooth Spline (Fut. Compatible)

Applications
Helicopters 600+, 1/10th Scale Short Course, Trucks, 1/10th Scale Buggies and 1/10th On Road Vehicles


Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.07 / 0.06 second
Torque oz./in. (6.0V/7.4V): 181 / 222 oz-in
Torque kg./cm. (6.0V/7.4V): 13 / 16 kg-cm
Size in Inches: 1.57 x 0.79 x 1.5
Size in Millimeters: 40 x 20 x 38
Weight oz.: 2.4 oz.
Weight gr.: 68 g.

Advanced Servo Specifications

Control System: HR Ultra Response Non-Programmable Digital
Operating Voltage Range: 4.8 - 7.4 vDC
Operating Temperature Range: -4° to 140° F (-20° to 60° C)
Idle Current: 10 mAh
No Load Running Current (6.0V/7.4V): 500 mAh
Stall Current (6.0V/7.4V): 6200 mAh
Dead Band Width: < 1 µsec
Potentiometer Type: 4 Slider Rated @ 1M Cycles
Connector Wire Length: 11.8 in. (300mm)
Connector Wire Gauge: 80 Strand 20 AWG
